Famicom av mod instructions?

[jpx72]

Nothing to do with AV mod. Clean slot first.

Yeah try the credit card+ old t-shirt cleaning trick Just be gentle, you don't want to bend any pins.

[untinip]

Do you ground the copper tape somehow?

[untinip]

Interesting! I've never used copper tape before. So, you just solder directly on it?

[untinip]

Cool! I will definitely attempt this. Thanks for clarifying, 80sFREAK!

[untinip]

Thanks for the tip! I'll use rubber gloves when doing it, then.

[famifan]

methanol

omg, do you have access to this toxic shit?

[koffieleut]

Hi there,

I'm new to the famicom scene.
I'm Dutch  so I have a pal TV.
And i have a GPM02 famicom with a megadrive 1\ genesis 1 power supply.
But I have a problem. I desoldered the 2SA937. Something went wrong and Pin C broke.
I tried to bridge it with enough of solder, but that didn't work.
When i tried to turn it on it doesn't give a signal to my tv.
I don't even know if this famicom is working.
Can I check this with a 2200ohm resistand and a LED?
Anyhow, is there somekind of replacement transistor instead of the 2SA937?

Thank you in advance.

Regards
koffieleut

[jpx72]

Of course you can use any PNP transisor, don't worry.

[koffieleut]

Fixed. fuse was blown. now my modded famicom works.

[GAINAX]

Hey there guys! Got my Famicom in the mail today and on the board it says HVC-CPU-08. The tutorial for removing and placing the transistor is only for rev 01-07.

Should I go ahead and do the same anyway?

Ps. I'm new to console modding, any help would be most helpful

[jpx72]

Can you please do a couple of hi-res photos of your board? It's quite rare to find this revision...thanks!

[GAINAX]

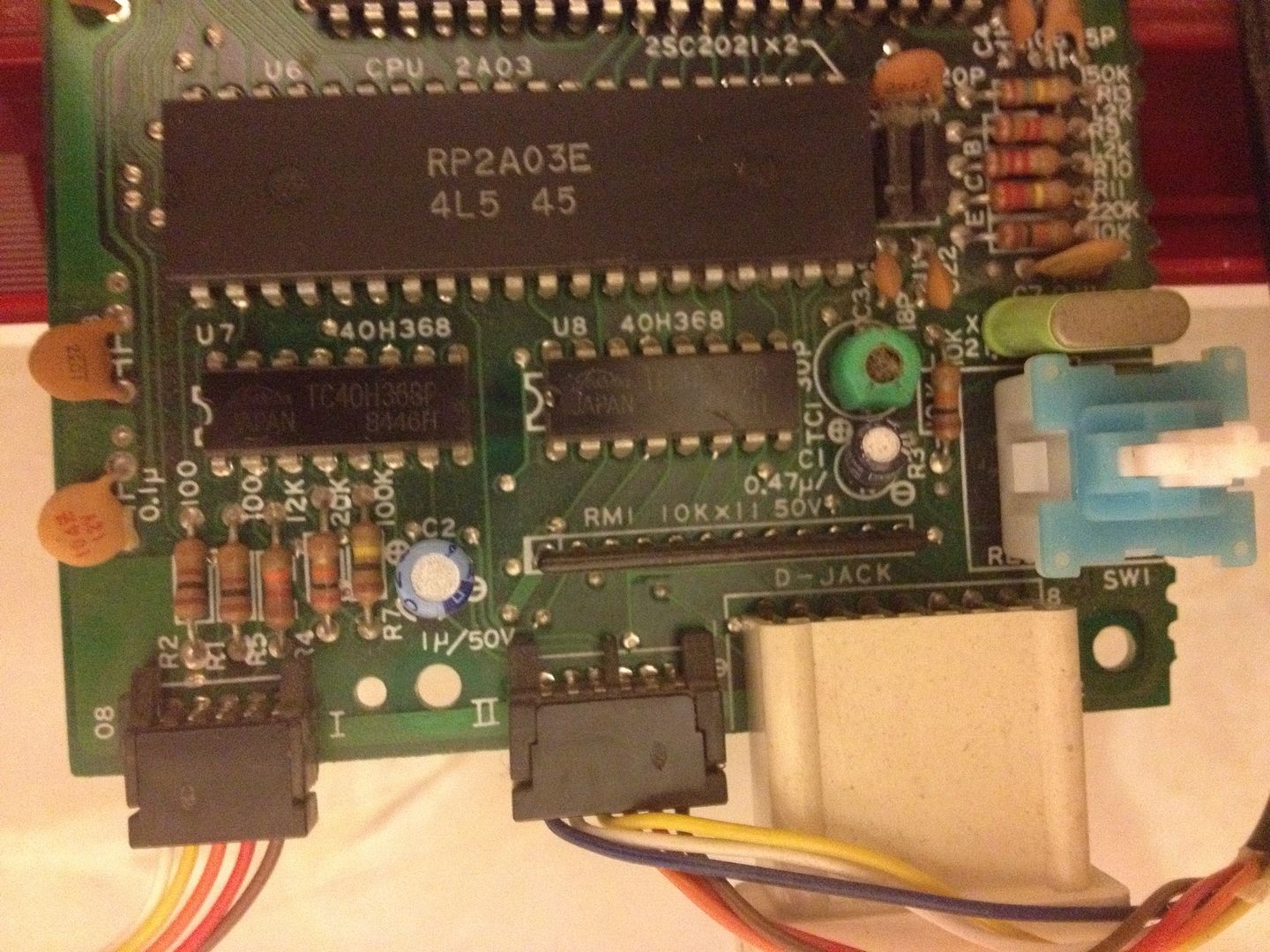

Sorry, these are the best photos I can take right now.

[2A03]

That board still has a 2SA937 so you could use that in an AV mod no problem.

[GAINAX]

Just follow the instructions on the tutorial for revs 1-7?
http://jpx72.detailne.sk/modd_files/fc/avmod.htm

[2A03]

Just follow the instructions on the tutorial for revs 1-7?
http://jpx72.detailne.sk/modd_files/fc/avmod.htm

That's right.
